700 Rotary Meter

Brand: TCS

The TCS 700 rotary flow meter combines excellent accuracy with low pressure drop. The TCS 700 rotary flow meter has a compact size and lightweight design that offers minimal maintenance and long service life. This meter is built with advanced materials of construction for a broad range of measurement applications and is accompanied by a full selection of accessories and electronic registration.

Features

The TCS 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life.

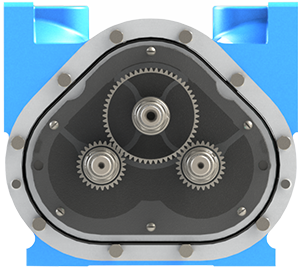

The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.

Specificaions

  • Flow:Capable of up to 1,000 GPM (3,785 LPM); Bi-directional Flow
  • Linear Accuracy:Capable of ± 0.15% of over the full flow range
  • Repeatability:Capable of 0.02% (constant operation conditions with 700SP meters & mechanical registration, using 1 CPS test fluid)
  • Viscosity:Will accurately measure liquids up to 1,500,000 SSU (325,000 CPS)
  • Temperature:- 40 to 160°F (- 40 to 71°C)

  • Approvals:Meets a wide range of weights and measures requirements. (Contact factory for information on specific approvals.)
